Sheets & Plates Manufacturers in india

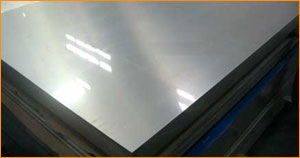

Sheets & Plates


Randhir Metal Supplies is a full steel products export like SS sheet plate coil Stainless Steel sheet plate coil nickel alloys sheet plate duplex steel sheet plate coil inconel sheet plate coil, monel sheet plate coil export india, Call +91-9867815181 Now

Range
Thickness: 1 mm to 200 mm
Width: 1000 mm to 3000 mm
Length: 2500 mm, 5000 mm, 6000 mm, 10000 mm.

Form
Hot Rolled / Cold Rolled.

Stainless Steel sheet plate coil

Grade: 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 L, 317, 317L, 321, 347, 347 H, 409, 410, 410S, 420, 430

Duplex Steel sheet plate coil

     Grade: 2205 (UNS No. S31803), 2207 (UNS No. S32760)

Nickel Alloy sheet plate coil

Grade:
Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201),
Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500),
Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825),
Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625),
Inconel 601 (UNS No. N06601),
Hastelloy C 276 (UNS No. N10276),
Alloy 20 (UNS No. N08020),
Titanium (Grade I & II)

Copper Alloy sheet plate coil

Grade:
UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500,
UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu -Ni- 70/30 )


Specialized in Stainless Steel Plate & Stainless Steel Sheets Special Offer on Stainless Steel Sheets For Our Client In South Africa, Nigeria, Malaysia, Singapore

Custom length and width up to 2000 mm can be made available. Exports is Our Specialty! and we can source many hard to find grades and or non-standards sizes to meet the special requirements of our customers. All ASTM A240 304/304L Stainless Steel Plate can be cut to size with the help of our extensive expertise in processing steel plate products. An ISO 9001:2008 Certified Company, Randhir Metal (Steel Plates, Sheets and Coil Division) is a leading stockholder, supplier and exporter of ASTM A240 304/304L Stainless Steel Plate.

Stainless steel 304/304L plates and stainless steel 316/316L plates, along with Duplex stainless steel plates offer good corrosion resistance to many chemical environments as well as marine and industrial exposures.SS 304, SS 304L, SS 316 and SS 316L Stainless Steel Plates are the most popular and economical grades of stainless steels.

Size Range: 5mm to 100 mm in width of 1000mm, 1250mm, 1500mm, 2000mm, 2500mm

ASTM A240: Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications

The ASTM A240 specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications. The steel shall conform to the requirements as to chemical composition specified. The material shall conform to the mechanical properties specified.


STAINLESS STEEL TRADENAME UNS NO. WERKSTOFF NO DENSITY (G/CM3)
304 304 Stainless S30400 1.4301 8
304L 304L Stainless S30403 1.4307 8
304H 304H Stainless S30409 1.4948 8
304LN 304LN Stainless S30453 1.4311 8

Stainless Steel 304, 304L, 304H Specifications

304, 304L, 304H Plates, Sheet, Coil, and Strip: ASTM A240

304, 304L, 304H Bars, Rods, Wire: ASTM A276

304, 304L, 304H Seamless & Welded Pipe and Tubes: ASTM A312, ASTM A213, ASTM A249

304, 304L, 304H Butt-weld Fittings & Flanges: ASTM A403, ASTM A182

304, 304L, 304H Forgings: ASTM A182


Stainless Steel 304 Plates Chemical Composition %

C MN SI P S CR NI FE
0.08 max. 2.00 max. 1.00 max 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 10.5 Balance

Stainless Steel 304L Plates Chemical Composition, %

C MN SI P S CR NI FE
0.03 max. 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance

Stainless Steel 304H Chemical Composition, %

C MN SI P S CR NI FE
0.04-0.10 2.00 max. 1.00 max. 0.045 max. 0.03 max. 18.0 – 20.0 8.0 – 12.0 Balance

Physical & Mechanical Properties of Stainless Steel 304, 304L, 304H

304 304L 304H
Density 8 8 8
Melting Range,℃ 1400 ℃ 1400 ℃ 1400 ℃
Elongation % 40 40 40
Tensile Strength (Mpa) 515 485 515
Yield Strength (Mpa) 205 170 205
Hardness (Brinell) 201 201 201


SS sheet plate coil Stainless Steel sheet plate coil nickel alloys sheet plate duplex steel sheet plate coil inconel sheet plate coil, monel sheet plate coil export india
