Blind Flanges Manufacturers in India

One of the largest Manufacturers & Suppliers of of Blind Flanges, BLRF Flanges, Carbon Steel Blind Flanges, Stainless Steel Blind Flanges, Alloy Steel Blind Flanges, Nickel Blind Flanges, Inconel Blind Flanges, Hastelloy Blind Flanges, ASTM A182 Blind Flanges, Blind Flanges manufacturers in india, Bahrain

We are leading manufacturers of Blind Flanges & have huge stock of 304 Blind Flanges, 316 Blind Flanges, astm a105 Blind Flanges, astm a182 Blind Flanges as per asme / ansi B16.5 blind flanges, ansi B16.47 blind flanges, Din blind flanges, jis blind flanges & uni blind flanges Standards.

Best Price of Blind Flanges in all size, classes & dimensions like Class 150 Blind Flanges, Class 300 Blind Flanges, Class 900 Blind Flanges, Class 1500 Blind Flanges, Class 2500 Blind Flanges, pn16 blind flange dimensions & pn40 blind flange dimensions Suppliers in india, Nigeria

Randhir Metal is one of the leading Manufacturer, Supplier and Exporter of Socket Weld Fittings. The socket weld design is commonly used in the demanding environments of chemical and power plants. We offer various types of socket weld fittings including socket weld elbow, socket weld tees, socket weld cross, Coupling and more.

They are used only in conjunction with as me pipe and are available in the same size range. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards.

Blind Flanges

Randhir Metal is a Higly Acclaimed manufacturer & supplier of Blind Pipe Flanges, Blind Flanges, Blind Flange, Blind Slip On Flange, Blind Weld Neck Flanges & Blind Pipe Fittings. A Blind pipe flange is a disc, collar or ring that attaches to pipe with the purpose of providing increased support for strength, blocking off a pipeline or implementing the attachment of more items. They are usually welded or screwed to the pipe end and are connected with bolts. A gasket is also fixed between the two mating flanges to provide a tighter seal.

We carry an endless variety of Blind flange products that have an infinite amount of uses, Check with us for the right Blind flanges choice for your job.


Manufacturers Of Blind Flanges in India :

A105 Blind Flange DN400 300 lb Flanges

DN400 pn10 flange dimensions. A105 Blind Flange Manufacturer, Randhir Metal Offers A105 Blind Flange, Size DN400, Pressure 300LB, Forged Flange.



Ready Stock of ASTM A515 gr.70 Carbon Blind Flange 8 inch 150lb Forged at our Warehouse Mumbai,India

Ready Stock of ASTM A515 gr.70 Carbon Blind Flange 8 inch 150lb Forged at our Warehouse Mumbai,India

ASTM A515 gr.70 Carbon Blind Flange 8 inch 150lb Forged

ASTM A515 GR.70 Carbon Blind Flange, Randhir Metal Supplies ASTM A515 GR.70 Carbon Blind Flange, 8 Inch, 150LB, Forged









Ready Stock of ASTM A105 Carbon Blind Flange 20in cl300 Forged at our Warehouse Mumbai,India

Ready Stock of ASTM A105 Carbon Blind Flange 20in cl300 Forged at our Warehouse Mumbai,India

ASTM A105 Carbon Blind Flange 20in cl300 Forged

ASTM A105 Carbon Blind Flange Manufacturer, Randhir Metal Offers ASTM A105 Carbon Blind Flange, 20 Inch, Class 300, Forged.









ASTM A105 Carbon rf Blind Flange 20 inch 300 lb Forged

ASTM A105 Carbon rf Blind Flange 20 inch 300 lb Forged

ASTM A105 Carbon rf Blind Flange 20 inch 300 lb Forged

Blind flange Manufacturers in India. ASTM A105 Carbon RF Blind Flange, Randhir Metal Supplies ASTM A105 Carbon RF Blind Flange, 20 Inch, 300#, Forged, Oil Coating. A105 Blind Flange Manufacturers in India offering special offer on A105 Blind Flange, Size DN400, Pressure 300LB, Forged, best for Pipe Connection.






ASME b16.5 Blind Flange 16 inch 300lb ASTM a350 lf2 rf

ASME b16.5 Blind Flange 16 inch 300lb ASTM a350 lf2 rf






ASME b16.5 Blind Flange 16 inch 300lb ASTM a350 lf2 rf

ASME B16.5 Blind Flange Manufacturer, Randhir Metal Offers ASME B16.5 Blind Flange, 16 Inch, 300LB, ASTM A350 LF2, BL, RF.






ASTM A182 F316l Blind Flange, rf, 150 lb, 4 inch

ASTM A182 F316l Blind Flange, rf, 150 lb, 4 inch

ASTM A182 F316l Blind Flange, rf, 150 lb, 4 inch

ASTM A182 F316L Blind Flange Manufacturer, Randhir Metal offers ASTM A182 F316L Blind Flange, 4 Inch (DN 100), 150 LB, RF Face, ANSI B16.5 Standard.








ASTM a182 f304 Blind Flange, 2 inch, 150 lb, ANSI b16.5

ASTM a182 f304 Blind Flange, 2 inch, 150 lb, ANSI b16.5

ASTM a182 f304 Blind Flange, 2 inch, 150 lb, ANSI b16.5

ASTM A182 F304 Blind Flange Manufacturer, Randhir Metal offers ASTM A182 F304 Blind Flange, 150 LB, 2 Inch (DN 50), ANSI B16.5, RF Face.








Manufacturers of blind flanges in india offering discount on A515 GR.70 Carbon Blind Flange

Manufacturers of blind flanges in india offering discount on A515 GR.70 Carbon Blind Flange

Manufacturers of blind flanges in india offering discount on A515 GR.70 Carbon Blind Flange

ASTM A515 GR.70 Carbon Blind Flange Price ASTM A515 GR.70 Carbon Blind Flange, 8 Inch, 150LB, Forged Flanges best Price in INDIA compare to China .






ASTM A105 Blind Flange, 300 lb, 8 inch, ANSI b16.5, rf

ASTM A105 Blind Flange, 300 lb, 8 inch, ANSI b16.5, rf

ASTM A105 Blind Flange, 300 lb, 8 inch, ANSI b16.5, rf

ASTM A105 Blind Flange Manufacturer, Randhir Metal offers ASTM A105 Blind Flange, 8 Inch (DN 200), 300 LB, ANSI B16.5, Varnished surface, RF face.








Carbon Steel Flanges Manufacturers in India

Manufacturers Of Carbon Steel Flanges in India

Carbon Steel Flanges Manufacturers in India

ASTM A105 Carbon Blind Flange Manufacturer in India quoting discounted price on ASTM A105 Carbon Blind Flange, 20 Inch, Class 300, Forged .






Carbon Steel Flange Manufacturer in India

Manufacturers Of Carbon Steel Flange in India

Carbon Steel Flange Manufacturer in India

ASTM A105 Carbon Steel RF Blind Flange Suppliers offering special dealer price of ASTM A105 Carbon RF Blind Flange, 20 Inch, 300#, Forged Flange .








Carbon Steel Blind Flange Manufacturers in India

Manufacturers Of Carbon Steel Blind Flange in India

Carbon Steel Blind Flange Manufacturers in India

ASME B16.5 Blind Flange Manufacturer Supplying CS Blind Flange at Dealer & Distributor Price, ASME B16.5 Blind Flange, 16 Inch, 300LB, ASTM A350 LF2, BL, RF







Stainless Steel 316L Blind Flanges Manufacturers In India

Manufacturers Of Stainless Steel 316L Blind Flanges In India






Stainless Steel 316L Blind Flanges Manufacturers In India

ASTM A182 F316L Blind Flange Manufacturer offering Special Dealer Price ASTM A182 F316L Blind Flange, 4 Inch (DN 100), 150 LB, RF Face, ANSI B16.5 Standard.





SS 304 Blind Flange Manufacturers in India

Manufacturers Of SS 304 Blind Flange in India

SS 304 Blind Flange Manufacturers in India

ASTM A182 F304 Blind Flange Manufacturer quoting surplus stock price of ASTM A182 F304 Blind Flange, 150 LB, 2 Inch (DN 50), ANSI B16.5, RF Face Flange.








SS 304L Blind Flange Manufacturers in India

Manufacturers Of SS 304L Blind Flange in India

SS 304L Blind Flange Manufacturers in India

ASTM A182 Blind Flange Manufacturer quoting Special dealer price for customers in UK,South Africa,Saudi Arabia, UAE, Indonesia, Malaysia, Singapore, Italy, Germany, USA, Canada ASTM A182 F304L Blind Flange, 8 inch (DN 200), 600 LB, RTJ Face, ANSI B16.5, without coating.







ASME/ ANSI B16.5 BLIND FLANGES, BL FORGED FLANGES manufacturing materials:

Dimensions Base Material Pressure Rating
ASME B16.5 ASTM A182 (Forgings) ASTM A240 (Plate) 150#. 300#. 400#. 600#. 900#. 1500#. 2500#.
API 605 ASTM A182 (Forgings) ASTM A240 (Plate) 150#. 300#. 400#. 600#. 900#. 1500#. 2500#.
ASME B16.47series A & B ASTM A182 (Forgings) ASTM A240 (Plate) 150#. 300#. 400#. 600#. 900#. 1500#. 2500#.
EN1092-1 ASTM A182 (Forgings) PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400.
BS4504 BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160.
BS10 BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) Table D. Table E. Table F. Table H. Table J. Table K. Table R. Table S.Table T.


Blind Flanges


Type Blind Flanges, BL Flanges, ASME 16.5 Blind Flanges / BLRF Flanges
Size ½” (15 NB) to 48″ (1200NB)
Pressure Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Material Stainless Steel Blind Flanges: ASTM A182 F202, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 316LN, 310S, 317L, 321, 410, 420, 440C, 202. F904L
Carbon Steel Blind Flanges: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Duplex Steel Blind Flanges: ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel Alloys
Nickel Alloy Blind Flanges: Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C-4, C-22, C276, B-2), Nickel (200 / 201 / 205), Monel 400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Duplex Steel, SS 904L, Titanium (1 & 2) Etc.
Specialize As per drawing
Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN
Connection Type Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove.
Flanges Forms Blind Raise Face -BLRF, Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Spectacle Blind, Ring Joint, Large Dia Flanges, Orifice Flanges, Girth Flange, Lap Joint Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing.

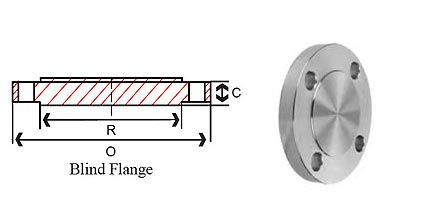

Dimensions of Blind Flanges ASME B16.5

ASME/ANSI B16.5 150lb Blind Flange /Standards, Dimensions & Weight

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diameter of Raised Face Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C G BC BH BN BD
1/2″ 15 89.00 11.20 35.10 60.50 15.80 4 1/2″ 0.5 1.1
3/4″ 20 98.50 12.70 42.90 69.90 15.80 4 1/2″ 0.8 1.8
1″ 25 108.00 14.20 50.80 79.30 15.80 4 1/2″ 0.9 2
1-1/4″ 32 117.50 15.70 63.50 88.90 15.80 4 1/2″ 1.3 2.9
1-1/2″ 40 127.00 17.50 73.20 98.60 15.80 4 1/2″ 1.6 3.5
2″ 50 152.50 19.10 91.90 120.70 19.10 4 5/8″ 2.6 5.7
2-1/2″ 65 178.00 22.40 104.60 139.70 19.10 4 5/8″ 4.1 9
3″ 80 190.50 23.90 127.00 152.40 19.10 4 5/8″ 5..1 11.2
3-1/2″ 90 216.00 23.90 139.70 177.80 19.10 8 5/8″ 6.5 14.3
4″ 100 228.50 23.90 157.20 190.50 19.10 8 5/8″ 7.5 16.5
5″ 125 254.00 23.90 185.70 215.90 22.40 8 3/4″ 9.2 20.3
6″ 150 279.50 25.40 215.90 241.30 22.40 8 3/4″ 11.8 26
8″ 200 343.00 28.40 269.70 298.50 22.40 8 3/4″ 20.4 45
10″ 250 406.50 30.20 323.90 362.00 25.40 12 7/8″ 31 68
12″ 300 482.50 31.80 381.00 431.80 25.40 12 7/8″ 47 103
14″ 350 533.50 35.10 412.80 476.30 28.50 12 1″ 60 132
16″ 400 597.00 36.60 469.90 539.80 28.50 16 1″ 81 178
18″ 450 635.00 39.60 533.40 577.90 31.80 16 1 1/8″ 93 205
20″ 500 698.50 42.90 584.20 635.00 31.80 20 1 1/8″ 127 280
24″ 600 813.00 47.80 692.20 749.30 35.10 20 1 1/4″ 190 419

Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.

ASME/ANSI B16.5 300lb Blind Flange /Standards, Dimensions & Weight

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diameter of Raised Face Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
Approx. Weight
inch dn O C G BC BH BN BD KG/PCS LB/PCS
1/2″ 15 95.5 14.2 35.1 66.5 15.7 4 1/2″ 0.8 1.8
3/4″ 20 117. 5 15.7 42.9 82.6 19.1 4 5/8″ 1.2 2.6
1″ 25 124. 0 17.5 50.8 88.9 19.1 4 5/8″ 1.5 3.3
1-1/4″ 32 133. 5 19.1 63.5 98.6 19.1 4 5/8″ 2 4.4
1-1/2″ 40 155. 5 20.6 73.2 114.3 22.4 4 5/8″ 2.9 6.4
2″ 50 165. 0 22.4 91.9 127 19.1 8 5/8″ 3.5 7.7
2-1/2″ 65 190. 5 25.4 104.6 149.4 22.4 8 3/4″ 5.3 11.7
3″ 80 209. 5 28.4 127 168.1 22.4 8 3/4″ 7.2 15.9
3-1/2″ 90 228. 5 30.2 139.7 184.2 22.4 8 3/4″ 9.2 20.3
4″ 100 254. 0 31.8 157.2 200.2 22.4 8 3/4″ 12.2 26.8
5″ 125 279. 5 35.1 185.7 235 22.4 8 3/4″ 16 35.2
6″ 150 317. 5 36.6 215.9 269.7 22.4 12 3/4″ 22 48.4
8″ 200 381. 0 41.1 269.7 330.2 25.4 12 7/8″ 36 79.5
10″ 250 444. 5 47.8 323.9 387.4 28.4 16 1″ 55 121
12″ 300 520. 5 50.8 381 450.9 31.8 16 1 1/8″ 82.5 182
14″ 350 584. 0 53.8 412.8 514..4 31.8 20 1 1/8″ 108 238
16″ 400 647. 5 57.2 469.9 571.5 35.1 20 1 1/4″ 139 306
18″ 450 711. 0 60.5 533.4 628.7 35.1 24 1 1/4″ 178 392
20″ 500 774. 5 63.5 584.2 685.8 35.1 24 1 1/4″ 228 503
24″ 600 914. 5 69.9 692.2 812.8 41.1 24 1 1/2″ 350 772

Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.

ASME/ANSI B16.5 600lb Blind Flange /Standards, Dimensions & Weight

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diameter of Raised Face Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
Approx. Weight
inch dn O C G BC BH BN BD KG/PCS LB/PCS
1/2″ 15 95.5 14.2 35.1 66.5 15.7 4 1/2″ 0.8 1.8
3/4″ 20 117. 5 15.7 42.9 82.6 19.1 4 5/8″ 1.4 3.1
1″ 25 124. 0 17.5 50.8 88.9 19.1 4 5/8″ 1.7 3.7
1-1/4″ 32 133. 5 20.6 63.5 98.6 19.1 4 5/8″ 2.4 5.3
1-1/2″ 40 155. 5 22.4 73.2 114.3 22.4 4 3/4″ 3.4 7.5
2″ 50 165. 0 25.4 91.9 127 19.1 8 5/8″ 4.4 9.7
2-1/2″ 65 190. 5 28.4 104.6 149.4 22.4 8 3/4″ 6.8 15
3″ 80 209. 5 31.8 127 168.1 22.4 8 3/4″ 8.9 19.7
3-1/2″ 90 228. 5 35.1 139.7 184.2 25.4 8 7/8″ 12.7 28
4″ 100 273. 0 38.1 157.2 215.9 25.4 8 7/8″ 18.6 41
5″ 125 330. 0 44.5 185.7 266.7 28.4 8 1″ 30.8 68
6″ 150 355. 5 47.8 215.9 292.1 28.4 12 1″ 38 83.6
8″ 200 419. 0 55.6 269.7 349.3 31.8 12 1 1/8″ 62.2 137
10″ 250 508. 0 63.5 323.9 431.8 35.1 16 1 1/4″ 102 225
12″ 300 559. 0 66.5 381 489 35.1 20 1 1/4″ 132 291
14″ 350 603. 5 69.9 412.8 527.1 38.1 20 1 3/8″ 158 348
16″ 400 686. 0 76.2 469.9 603.3 41.1 20 1 1/2″ 225 496
18″ 450 743. 0 82.6 533.4 654.1 44.5 20 1 5/8″ 285 628
20″ 500 813. 0 88.9 584.2 723.9 44.5 24 1 5/8″ 365 805
24″ 600 940. 0 101.6 692.2 838.2 50.8 24 1 7/8″ 532 1170

Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.

ASME/ANSI B16.5 1500lb Blind Flange /Standards, Dimensions & Weight

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
of
Hub
Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
Approx. Weight
inch dn O C X BC BH BN BD KG/PCS LB/PCS
1/2″ 15 120.7 22.4 38.1 82.6 22.4 4 3/4″ 1.9 4.2
3/4″ 20 130 25.4 44.5 88.9 22.4 4 3/4″ 2.7 6
1″ 25 149.4 28.4 52.3 101.6 25.4 4 7/8″ 3.7 8.1
1-1/4″ 32 158.8 28.4 63.5 111.3 25.4 4 7/8″ 4.3 9.5
1-1/2″ 40 177.8 31.8 69.9 124 28.4 4 1″ 5.9 13
2″ 50 215.9 38.1 104.6 165.1 25.4 8 7/8″ 11.3 24.9
2-1/2″ 65 244.3 41.1 124 190.5 28.4 8 1″ 16 35.2
3″ 80 266.7 47.8 133.4 190.5 25.4 8 7/8″ 19.5 43
4″ 100 311.2 53.8 162.1 235 31.8 8 1 1/8″ 33 72.8
5″ 125 374.7 73.2 196.9 279.4 35.1 8 1 1/4″ 60 132
6″ 150 393.7 82.6 228.6 317.5 31.8 12 1 1/8″ 75 165
8″ 200 482.6 91.9 292.1 393.7 38.1 12 1 3/8″ 125 275
10″ 250 584.2 108 368.3 469.9 38.1 16 1 3/8″ 215 474
12″ 300 673.1 124 450.9 533.4 38.1 20 1 3/8″ 316 697
14″ 350 749.3 133.4 495.3 558.8 41.1 20 1 1/2″
16″ 400 825.5 146.1 552.5 616 44.5 20 1 5/8″
18″ 450 914.4 162.1 596.9 685.8 50.8 20 1 7/8″
20″ 500 984.3 177.8 641.4 749.3 53.8 20 2″
24″ 600 1168.4 203.2 762 901.7 66.5 20 2 1/2″

Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.

ASME/ANSI B16.5 2500lb Blind Flange /Standards, Dimensions & Weight

Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C BC BH BN BD
1/2″ 15 133.4 30.2 88.9 22.4 4 3/4″ 3 7
3/4″ 20 139.7 31.8 95.3 22.4 4 3/4″ 4.5 10
1″ 25 158.8 35.1 108 25.4 4 7/8″ 5 12
1-1/4″ 32 184.2 38.1 130 28.4 4 1″ 8 18
1-1/2″ 40 203.2 44.5 146.1 31.8 4 1 1/8″ 11 25
2″ 50 235 50.8 171.5 28.4 8 1″ 17 38
2-1/2″ 65 266.7 57.2 196.9 31.8 8 1 1/8″ 25 55
3″ 80 304.8 66.5 228.6 35.1 8 1 1/4″ 39 86
4″ 100 355.6 76.2 273.1 41.1 8 1 1/2″ 60 133
5″ 125 419.1 91.9 323.9 47.8 8 1 3/4″ 101 223
6″ 150 482.6 108 368.3 53.8 8 2″ 156 345
8″ 200 552.5 127 438.2 53.8 12 2″ 242 533
10″ 250 673.1 165.1 539.8 66.5 12 2 1/2″ 465 1023
12″ 300 762 184.2 619.3 73.2 12 2 3/4″ 665 1463

Note:
1) Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.

Dimensional Tolerances of Blind Flanges ASME B16.5

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter
not applicable
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
not applicable
Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm


Our Live Stock of Blind Flanges

Reasonable Price stainless steel Npt Blind Flange
DIN standard SS316 PN40 DN50 Blind Flange
manufacturer hot sale stainless steel spade blind flange
DIN standard SS316 PN40 DN50 Blind Flange

FOB Price: US $0.2-2000 / Piece

Ansi b16.5 300lb blind flange
ANSI B16.5 150 blind flange
High Quality Slip Blind Flange Customized
Ansi b16.5 300lb blind flange

FOB Price: US $1-10000 / Piece

ANSI B16.5 150 blind flange

FOB Price: US $1-7 / Set

High Quality Slip Blind Flange Customized

FOB Price: US $0.09-9.89 / Piece

Stainless Steel Flanges,Blind Flanges
ANSI B16.48 RF spectacle blind flange, paddle spacer and blank flange
ASTM A351 2 F316l cf3m stainless steel blind flanges
Stainless Steel Flanges,Blind Flanges

FOB Price: US $1-500 / Piece




Leading manufacturer of Blind Flanges

We also having stock of Blind Flanges & other Stainless Steel Flanges, Carbon Steel Flanges, Alloy Steel Flanges manufactured by :

Erne Fittings, Austria Metal far, Italy Lame S.R.l., Italy
BENKAN Corporation, Japan BKL- Thai Benkan, Thailand TecnoForge, Italy
Ulma, Spain Mega, Italy Melesi, Italy
Interfit, France Raccortubi S.P.A., Italy


Blind Flanges Application

  • Blind Flanges uses in Oil and Gas Pipeline
  • Blind Flanges uses in Chemical Industry
  • Blind Flanges uses in Plumbing
  • Blind Flanges uses in Oil & Gas Industry
  • Blind Flanges uses in Water Supply Systems
  • Blind Flanges uses in Paper & Pulp Industry
  • Blind Flanges uses in Power Plant
  • Blind Flanges uses in Fabrication Industry
  • Blind Flanges uses in General purpose applications
  • Blind Flanges uses in Food Processing Industry
  • Blind Flanges uses in Structural Pipe
  • Blind Flanges uses in Heat Exchangers

Specifications, Dimensions Blind Flanges

  • ANSI/ASME B16.5 Blind Flange 150lb
  • ANSI/ASME B16.5 Blind Flange 300lb
  • ANSI/ASME B16.5 Blind Flange 400lb
  • ANSI/ASME B16.5 Blind Flange 600lb
  • ANSI/ASME B16.5 Blind Flange 900lb
  • ANSI/ASME B16.5 Blind Flange 1500lb
  • ANSI/ASME B16.5 Blind Flange 2500lb
  • ANSI/ASME B16.47 Series B Blind Flange 75lb
  • ANSI/ASME B16.47 Series B Blind Flange 150lb
  • ANSI/ASME B16.47 Series B Blind Flange 300lb
  • ANSI/ASME B16.47 Series B Blind Flange 400lb
  • ANSI/ASME B16.47 Series B Blind Flange 600lb
  • ANSI/ASME B16.47 Series B Blind Flange 900lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange 150lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange 300lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange 400lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange 600lb
  • ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange 900lb

we are the distributor of the of these Brands. we also have the sales representative who can provide the proper information of these Brands & about Grades, material and sizes of Forged Flanges.


Blind Flanges Price


Manufacturers of Different Types Flanges, listed below

Forged Flanges Blind Flanges Slip on Flanges
Forged Flanges Blind Flanges Slip on Flanges
Weld Neck Flanges Lapped Joint Flanges Threaded Flanges
Weld Neck Flanges Lapped Joint Flanges Threaded Flanges
Socket Weld Flanges Long Weld Neck Flanges Weldo / Nipo Flanges
Socket Weld Flanges Long Weld Neck Flanges Weldo / Nipo Flanges
Orifice Flanges Reducing Flanges Flat Flanges
Orifice Flanges Reducing Flanges Flat Flanges
Loose Flanges RTJ Flanges Sorf Flanges
Loose Flanges RTJ Flanges Sorf Flanges
Square Flanges Swrf Flanges Expander Flanges
Square Flanges  Swrf Flanges Expander Flanges
Wnrf Flanges Ring Type Joint Flanges Groove & Tongue Flanges
Wnrf Flanges Ring Type Joint Flanges Groove & Tongue Flanges
High Hub Blinds Flanges Spectacle Blind Flanges Weld Neck Flanges A / B
High Hub Blinds Flanges Spectacle Blind Flanges Weld Neck Flanges A / B
Spades Ring Spacers Flanges Screwed Flanges Forging Facing Flanges
Spades Ring Spacers Flanges Screwed Flanges Forging Facing Flanges


Locate our dealers & distributors in following Countries, Cities

Indonesia Malaysia Singapore
Vietnam Philippines United Arab Emirates
Saudi Arabia Iraq Iran
Turkey Egypt Oman
Kuwait Qatar Bahrain
Nigeria Kenya Tanzania
South Africa United States of America Canada
Italy Netherlands Germany
Mexico Australia New Zealand


What & Where we supply

Mumbai, Lucknow, Coimbatore, Imphal, Mysore, Ratlam, Delhi, Kanpur, Darjeeling, Jalandhar, Nagpur, Solapur, Kolkata, Allahabad, Dehradun, Jammu, Nashik, Srinagar, Chennai, Ahmedabad, Faridabad, Jamshedpur, Nellore, Surat, Bangalore, Chandigarh, Ghaziabad, Jhansi, Patna, Siliguri, Hyderabad, Amritsar, Noida, Kochi, Pune, Thiruvanthapuram, Jaipur, Aizawl, Guwahati, Kozhikode, Raipur, Vishakhapatnam, Jabalpur, Bhopal, Gwalior, Ludhiana, Rajahmundry, Thane, Agra, Bhubaneshwar, Gurgaon, Madurai, Rajkot , Varanasi, Bhilai, Haridwar, Meerut, Ranchi, Ahmednagar, Akola, Amravati, Aurangabad, Baramati, Beed, Bhandara, Bhiwandi, Buldhana, Chandrapur, Chimur, Dahanu, Dhule, Dindori, Erandol, Gadchiroli, Hatkanangle, Hingoli, Ichalkaranji, Jalgaon, Jalna, Karad, Khed, Yavatmal, Kolaba, Kolhapur, Kopargaon, Latur, Malegaon, Mumbai, Nagpur, Nanded, Nandurbar, Nashik, Osmanabad, Pandharpur, Parbhani, Pune, Rajapur, Ramtek, Ratnagiri, Raver, Sangli, Satara, Shirdi, Shirur, Solapur, Thane, Wardha, Washim, Andhra Pradesh, Jammu and Kashmir, Nagaland, Uttarakhand, Haryana, Lakshadweep, Arunachal Pradesh, Jharkhand, Odisha, West Bengal, Himachal Pradesh , Assam, Karnataka, Punjab, Andaman and Nicobar Islands, Puducherry , Bihar, Kerala, Rajasthan, Chandigarh, Meghalaya , Chhattisgarh, Madhya Pradesh, Sikkim, Dadar and Nagar Haveli, Mizoram , Goa, Maharashtra, Tamil Nadu, Daman and Diu, Tripura, Gujarat, Manipur, Telangana, Delhi, Uttar Pradesh
